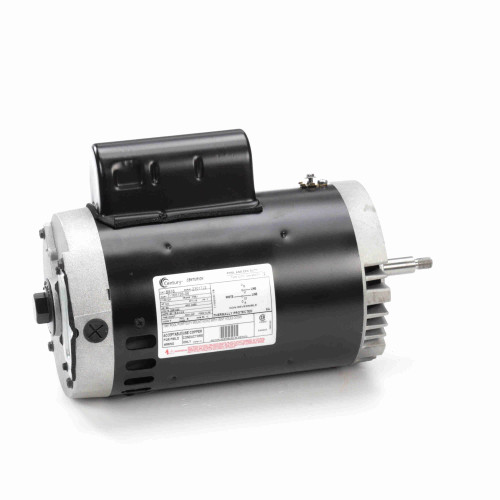

3 HP Round Flange Single Phase Replacement Pool Pump Motor
- Black and silver single phase replacement motor pump
- Stainless steel shaft for corrosion protection
- Motor includes a sealed ball bearing; counterclockwise rotation
Description
The 3 HP motor is a must-have in your mechanical devices assortment. This thermally protected single-phase motor has a 1.15 service factor. The high quality and high performance make this the ideal choice of all.
Product Features:
Energy-efficient pool pump motor
Stainless steel shaft for corrosion protection
Advanced cooling system for extended motor life
Pump motor has a threaded shaft that allows for convenient and direct mounting
Additional Features:
Voltage: 208-230 V
Output HP: 3 hp
Frequency: 60 Hz
Speed: 3450 rpm (single speed)
Enclosure: drip proof
Rotation: counterclockwise pump end
Shaft type: threaded
Frame: Y56J
Mounting: C face
Motor orientation: horizontal
Ambient temperature: 50 °C
Switchless
Permanent split capacitor
UL 1081 design
Material(s):
Adapter bracket: aluminum
Shaft: stainless steel
Product Specifications
| Weight | Width | Height | Depth |
|---|---|---|---|
| 1.00 LBS | 1.00" | 1.00" | 1.00" |
