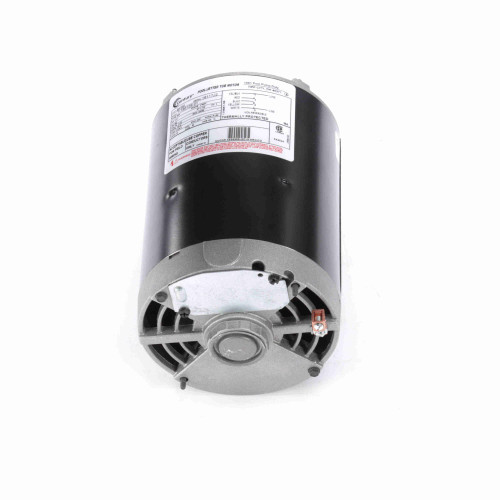

1 HP Thru-Bolt Threaded Shaft Horizontal Pool Pump Motor without Base
- Black threaded shaft pool pump motor without base
- Withstand ambient temperatures up to 40 C
- Motor includes a sealed ball bearing; counterclockwise rotation
- Threaded shaft allows for convenient and direct mounting
- 9.5 inches high by 9.5 inches wide by 15.63 inches long
Description
Make the swimming pool works more relaxed and effortless with this 1 HP motor. It has a 1.00 service factor and is one of the best products of Doughboy Lomart. The efficiency and performance of these motors with a threaded shaft and sealed ball bearings are unmatchable.
Product Features:
Includes sealed ball bearings
Withstand ambient temperature up to 40°C
Pump motor has a threaded shaft that allows for convenient and direct mounting
Additional Features:
Output HP: 1.0 Hp
Output KW: 0.75 kW
Frequency: 60 Hz
Voltage: 115 V
Current: 10.0 A
Speed: 3450 rpm
Service factor: 1
Phase: 1
Insulation class: B
Frame: V48Y
Enclosure: drip proof
Rotation: counterclockwise pump end
Thermal protection: thermally protected
Poles: 2
Mounting: thru bolt
Motor orientation: horizontal
Shaft type: threaded
Dimensions: 9.5"H x 9.5"W x 15.63"L
Shaft diameter: 0.5"
Shaft extension: 2.37"
Frame length: 6.25"
Material(s): stainless steel
Frame: rolled steel
Product Specifications
| Weight | Width | Height | Depth |
|---|---|---|---|
| 16.00 LBS | 9.50" | 9.50" | 15.50" |
